PRODUCT DETAILS

Overview

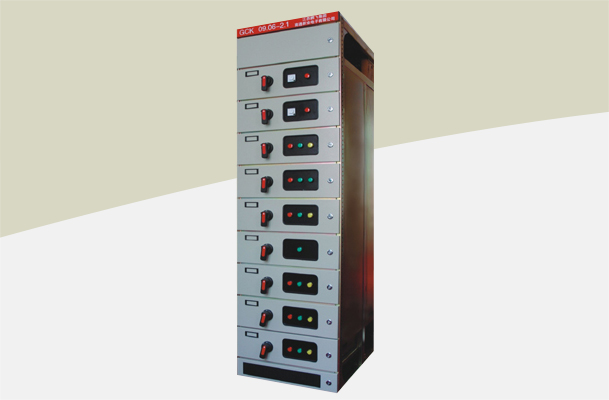

GCK low-voltage withdrawable switchgear is a new type of low-voltage switchgear developed in China by absorbing advanced foreign technology and meeting the requirements of domestic users for capacity expansion, computer interface, centralized power control, and easy installation and maintenance. The technical standards comply with standards such as IEC4391-1 "Low voltage switchgear and control equipment" and JB/T9661 "Low voltage withdrawable switchgear".

Technical Specifications

Rated insulation voltage: 660V
Rated working voltage: 380660V
Rated current of horizontal busbar: ≤ 3150A
Rated current of vertical busbar: 1200A
Rated short-time withstand current (1S): 50KA
Rated short-time peak current: 105KA
Protection level: IP30, IP40
