PRODUCT DETAILS

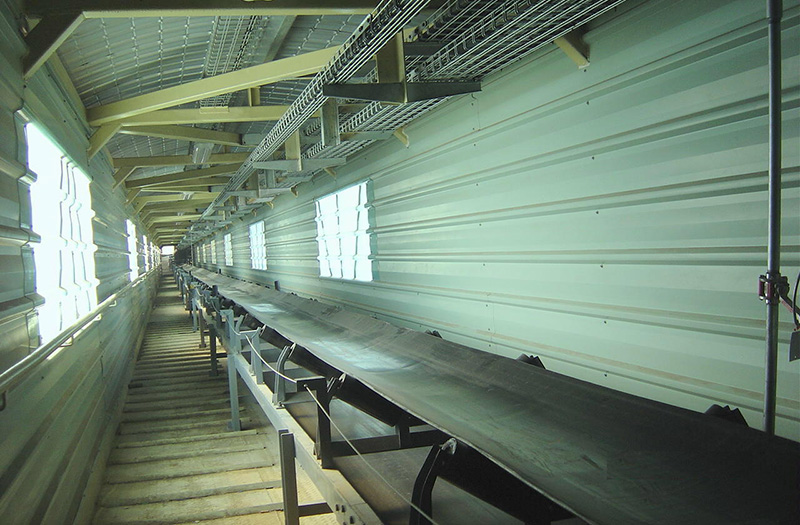

[Purpose] TD75 universal fixed belt conveyor (hereinafter referred to as TD type) is widely used in metallurgy, coal, transportation, and hydropower sectors to transport bulk materials or finished items due to its advantages of large conveying capacity, simple structure, easy maintenance, low cost, and strong universality. According to the requirements of the conveying process, it can be conveyed by a single machine, or by multiple machines or combined with other conveyors to form a horizontal or inclined conveying system.


The TD75 model is used within the ambient temperature range of+40 ℃ to -10 ℃, and the temperature of the conveyed material is below 50 ℃. For occasions with special requirements such as explosion prevention, waterproofing, corrosion prevention, and heat and cold resistance, corresponding measures should be taken separately.

Technical features and main parameters

The capacity that TD75 can transport should be below 2.5t/m3.

This series is divided into six specifications based on bandwidth: 500, 650, 800, 1000, 1200, 1400mm, etc.

According to the driving power, it can be divided into 17 types: 1.5, 2.2, 3, 4, 5.5, 7.5, 11, 15, 18.5, 22, 30, 55, 75, 90, 110, 132, 160kw, etc.

Divided by belt speed into eight types: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0m/s, etc.

The maximum conveying capacity of this series is shown in Table 1.

The conveying capacity in the table is calculated under the conditions of material capacity f=1.0t/m3, conveyor inclination angle of OO~70 °, and material dynamic stacking angle of 30O.
