PRODUCT DETAILS

Overview

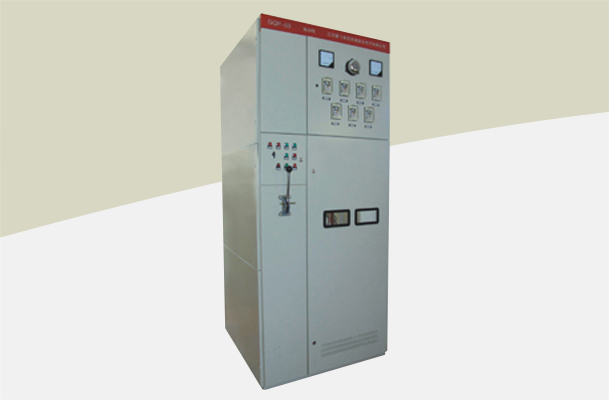

GQP-03 high-voltage comprehensive starter cabinet is widely used for starting 6-10 kV, 380-KW-2000KW wound motor. This product has a simple structure, reliable operation, and good protection performance. Suitable for light and heavy load starting of motors such as ball mills, air compressors, crushers, large fans, and large water pumps in industrial sectors such as building materials, metallurgy, steel, chemical, mining, and petroleum. This cabinet can provide DCS interfaces according to user needs.
working conditions
This product is installed indoors and operates normally under the following conditions.
(1) The altitude shall not exceed 1000m.
(2) The temperature of the surrounding medium shall not exceed+40 ℃ and shall not exceed -30 ℃.
(3) The relative humidity of the air should not exceed 85% (at 20 ℃± 5 ℃).
(4) When installed perpendicular to the ground, the installation inclination should not exceed 5 degrees.
(5) The amplitude should not exceed 0.5mm, and the frequency should not exceed 600 vibrations per minute.
(6) In a medium without explosive hazards, and without any gas or conductive dust that can corrode metals or damage insulation.
