PRODUCT DETAILS

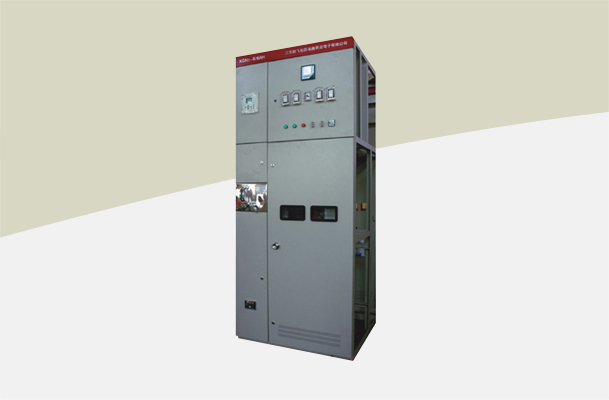

The XGN2 series high-voltage switchgear can be used in single busbar and single busbar with bypass systems, and is a fully enclosed structure; No form of insulation partition is used inside the cabinet, and the air insulation distance is greater than 125mm. A large climbing distance insulation sleeve is used to provide the switchgear with high insulation strength and stability; The use of a disc type five proof operating mechanism simplifies the structure of the interlocking device and ensures reliable operation.
Technical Specifications
Rated voltage: 12KV
Rated current: 630-3150A
Rated short-circuit breaking current: 20-40KA
Rated short-circuit closing current: 40-100KA
Protection level: IP2X
