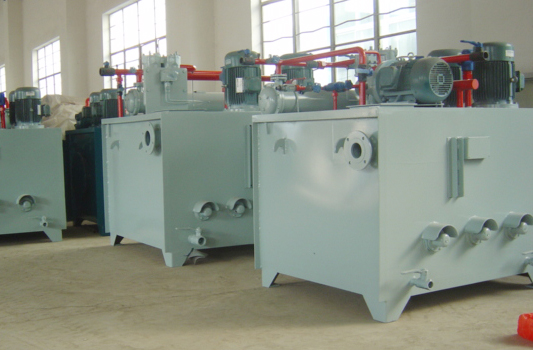

GXYZ type thin oil lubrication station

This lubrication station is mainly used in the thin oil lubrication circulation system of dynamic and static sliding shoe bearings for equipment such as metallurgy, heavy mining, power, chemical, forging, etc. This lubrication system is divided into two parts: high pressure and low pressure. High pressure is used for lubrication during the start and stop of the main engine. Low pressure is used for lubricating the normal operation of the host. The viscosity grade of the working medium used in this lubrication station is N220~N320 industrial lubricating oil.....

CONSULTATION HOTLINE: +86-513-88755314 +86-13806278661

PRODUCT DETAILS

[Overview] This lubrication station is mainly used in the thin oil lubrication circulation system of dynamic and static sliding shoe bearings for equipment such as metallurgy, heavy mining, power, chemical, forging, etc. This lubrication system is divided into two parts: high pressure and low pressure. High pressure is used for lubrication during the start and stop of the main engine. Low pressure is used for lubricating the normal operation of the host. The viscosity grade of the working medium used in this lubrication station is N220~N320 industrial lubricating oil.

TECHNICAL SPECIFICATIONS

Model name/parameters		40/63	16/25	6/10
Model name/parameters		High and low pressure lubrication station
High-pressure pump	Work pressure(MPa)	25~32
High-pressure pump	Nominal flow rate(L/min)	2.5	2.5	1.25
Low pressure pump	Work pressure(MPa)	0.4
Low pressure pump	Nominal flow rate(L/min)	40，63	16，25	6，10
Fuel tank capacity(m³)		1	0.63	0.178
Filtration area(m²)		0.08	0.06	0.04
Filtration accuracy(mm)		0.12	0.12	0.12
Heat transfer area(m²)		4.3	3	0.65
Cooling water temperature(℃)		≤28	≤28	≤28
Cooling water consumption(m³/h)		3-3.8	1.8	0.6
